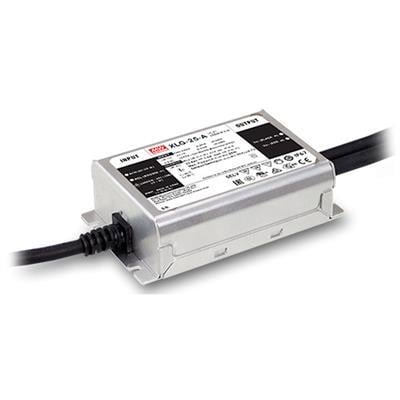

| XLG-25 Sabit Akım | |||
| SPECIFICATION | |||
| Model | XLG-25 | ||
| Output | Rated Current | 700mA | |
| Constant Current Region | 22-54V | ||
| Rated Power | 90VAC-305VAC | 25W | |
| Current Ripple | 5.0% max. @rated current | ||
| Open Circuit Voltage (Max.) | 57V | ||
| Current ADJ. Range | 0.25-1.05A | ||
|
Kasa
Ölçüsü: 105*63*30mm |
|||
|
(L*W*H) |
|||
| Type | Function |
| A | Io adjustable via built-in potentiometer |
| AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
