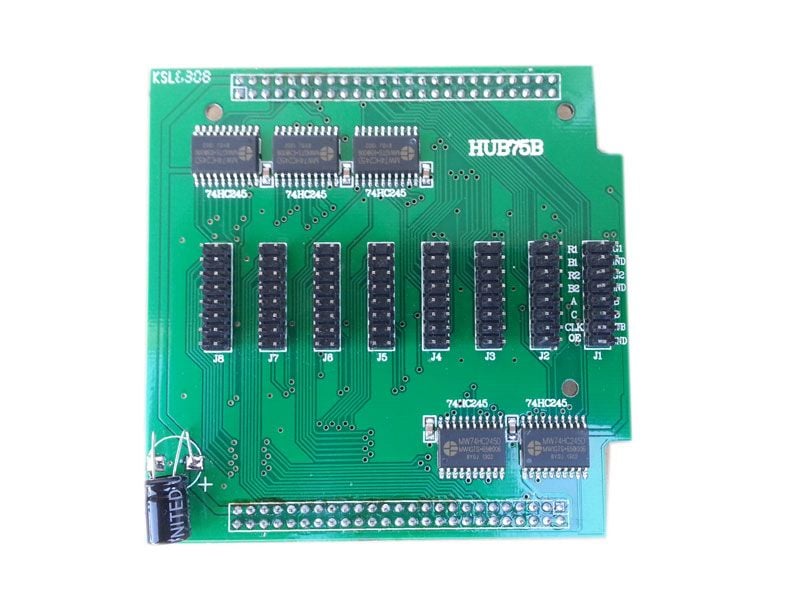

HUB75B 8XHUB75 PORT HUB HD SERİSİ İÇİN

LED display Conversion Card Hub75B Adapter

Hub Adapter real pixel scan(support 1/16 scan drive led module)
HUB75B is different from HUB75,Pls check its definition from the following sheet.
Supply of the LED display Hub75B display products, quality assurance, welcomed the talks.
1. all pin gold-plated with copper (plating thickness of 0.8u)
2. the driver chip (74HC245) with SM
3. PCB using FR4-V0-level glass plate
4. the output interface for the 2.54mm-2 x 8P.
5.interface specification:(Note:the HUB75B card is a little different from HUB75 card,pls carefully check the interface definition below)
HUB75(full color scan)
N.O definition N.O definition
1 DR1 2 DG1
3 DB1 4 GND
5 DR2 6 DG2
7 DB2 8 GND
9 A 10 B
11 C 12 D
13 CLK 14 LAT
15 OE 16 GND

All types of interface design HUB board, welcome to inquire.
Non-standard interfaces can be developed on behalf of clients.
